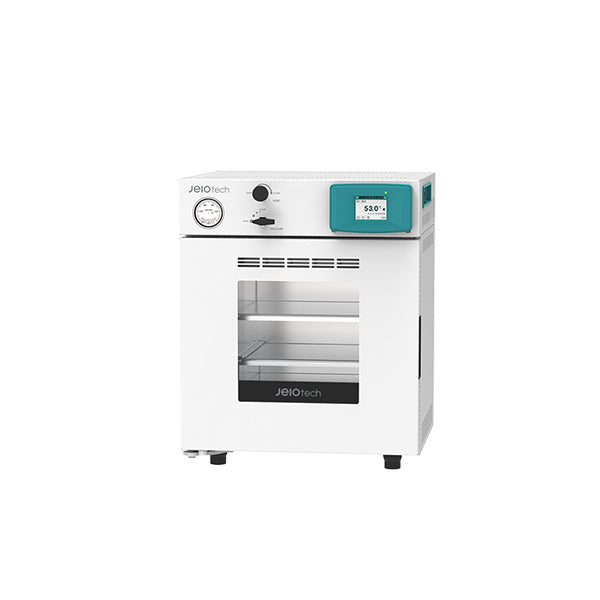

Jeio Tech OV4-30S Vacuum Oven (Window Door), 28L (1.0 cu. ft.), 120V | AAH13336U

Routine sample processing and analytical preparation depend on equipment built to exacting technical standards. The Jeio Tech OV4-30S Vacuum Oven, Window Door, 28L (1.0 cu. ft.), 120V, 60Hz, US Plug (Item Number AAH13336U) equips research and testing laboratories with dedicated vacuum ovens functionality.

• Chamber volume (L / cu ft): 28 / 1
• Vacuum gauge range, analog (Mpa): 0 to 0.1
• Range (C / F): Amb. +15 to 250 / Amb. +27 to 482
• Wide temperature range that can be controlled up to 250C.
• Improved temperature distribution.(+/-1.5C at 100C)
• 3-point temperature calibration, high temperature accuracy over a wide temperature range.

Key physical specifications for the Jeio Tech OV4-30S Vacuum Oven (Window Door) (AAH13336U) include overall dimensions of 20.6 x 21.1 x 25.8 In. and an operating weight of 150 lbs. Units are dispatched in a Pallet (Shipping Size: 24 x 24 x 32 In.; Shipping Weight: 177 lbs) to protect structural integrity during delivery. Core technical ratings include Chamber volume (L / cu ft) of 28 / 1, Vacuum gauge range, analog (Mpa) of 0 to 0.1, Range (C / F) of Amb. +15 to 250 / Amb. +27 to 482.

Laboratory ovens are used for high-temperature applications such as drying, curing, sterilizing, and heat-treating samples and equipment. Vacuum ovens are designed to dry, cure, or heat samples under reduced pressure, allowing for lower-temperature processing and minimizing oxidation or thermal degradation. They are ideal for drying heat-sensitive, moisture-sensitive, or oxidation-prone materials, such as powders, delicate electronics, pharmaceuticals, and biological samples. By removing air and moisture through vacuum, these ovens provide gentle, uniform drying and are widely used in chemistry, biotech, electronics, and materials research for safe, contamination-free thermal processing. By lowering the boiling point through vacuum pressure, the OV4 enables effective drying at reduced temperatures while minimizing thermal degradation and oxidation. Its robust construction ensures consistent performance, while the intuitive control system offers precise temperature regulation and safety features. Ideal for applications in pharmaceuticals, electronics, and materials research, the OV4 delivers reliable and uniform vacuum drying with exceptional ease of use.

Jeio Tech manufactures model OV4-30S (Item Number AAH13336U) in South Korea under strict quality control standards, providing comprehensive specification records for institutional procurement.
